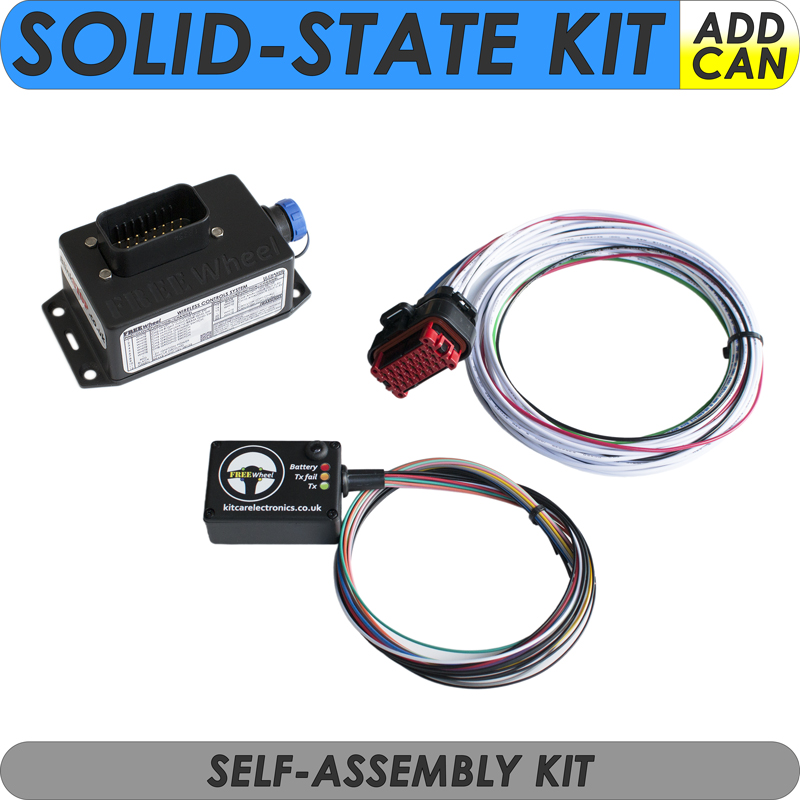

SOLID-STATE system kit with eight switching and two analogue 0-5V channels. Includes AMPSEAL connector, matching loom and pigtailed Transmitter, for wireless control of your ECUs, PDMs and accessories.
Mount the Transmitter to the rear of your steering wheel button plate* or wherever you want fingertip wireless control, and wire to your switches and paddles.
A revolution in wireless steering wheel controls, for kit cars and race cars.
Main Features
- 2 variable 0-5V outputs
- 8 solid-state switched outputs
- option to add CAN signalling - Plug & Play CAN Bus compatibility with Haltech, Link, ECUMaster, AiM, Syvecs & more.
*steering wheel not included and is shown for illustration purposes only.
| FREEWheel USB configuration software.zip |
|
| FREEWheel SOLID-STATE 23-pin connector pinout diagram.pdf |
|
| FREEWheel SOLID-STATE 8 & 10 installation instructions.pdf |
|
| 10 hole button plate X82.pdf |
|
| 10 hole button plate D82.pdf |
|
| KCE_WirelessCAN_Kvaser_dbc.zip |
|
| KCE_WirelessCAN_ECUMaster.zip |
|
| KCE_WirelessCAN_AIM_xc1.zip |
|
| FREEWheel USB config tool Windows driver.zip |
|
| FREEWheel CAN configuration instructions.pdf |
|
| KCE_WirelessCAN_MaxxECU.zip |
|
| FREEWheel SOLID-STATE16 installation instructions.pdf |
|
Included
- Pigtailed Transmitter
- Transmitter battery
- 10-channel solid-state switching Receiver
- USB cable
- Installation instructions
Optional
- 23-pin 0.7m loom or 23 pins & housing
- CAN-enabled Receiver upgrade
- 120Ohm CAN termination resistor (fitted or loose)
Hardware Features
- Full solid-state low-side switching of 8 concurrent 600mA resistive or inductive loads, such as standard automotive relays, with built-in short circuit and overcurrent protection
- 2 analogue output channels for wireless 0-5V control such as multimap boost switching and traction slip control
- Option for CAN output for seamless PDM integration across all channels
- Range of driving and racing output channel modes
- Re-configurable using the included FREEWheel USB programming software
- AMPSEAL connector(s)
- IP67-rated USB port with rubber cap
- Flame-retardant ABS plastic
- Fully conformal coated for environmental protection
- Battery life over 5 years
- Unique Transmitter ID prevents cross-talk and interference
- Wiring loom 20AWG
Driving Features
- Momentary
- Latching
- BlinkSTOP indicator cancelling
- BeamSTOP main beam toggle & flash
- Flash-to-Pass
- IVA fog light behaviour
- Hazards
- Wiper Latch & Intermittent
- Flash
- Rainlight behaviour
Size & Weight
- Pigtailed Transmitter: 176 x 154 x 19-29mm, 61g including battery
- Solid-state Receiver: 86 x 55 x 35mm, 285g including loom
