RELAY and/or SOLID-STATE with CANbus system with fourteen switching and two analogue 0-5V channels. Includes AMPSEAL connector, matching loom and Easyfit Transmitter and option to specify carbon fibre button plate.

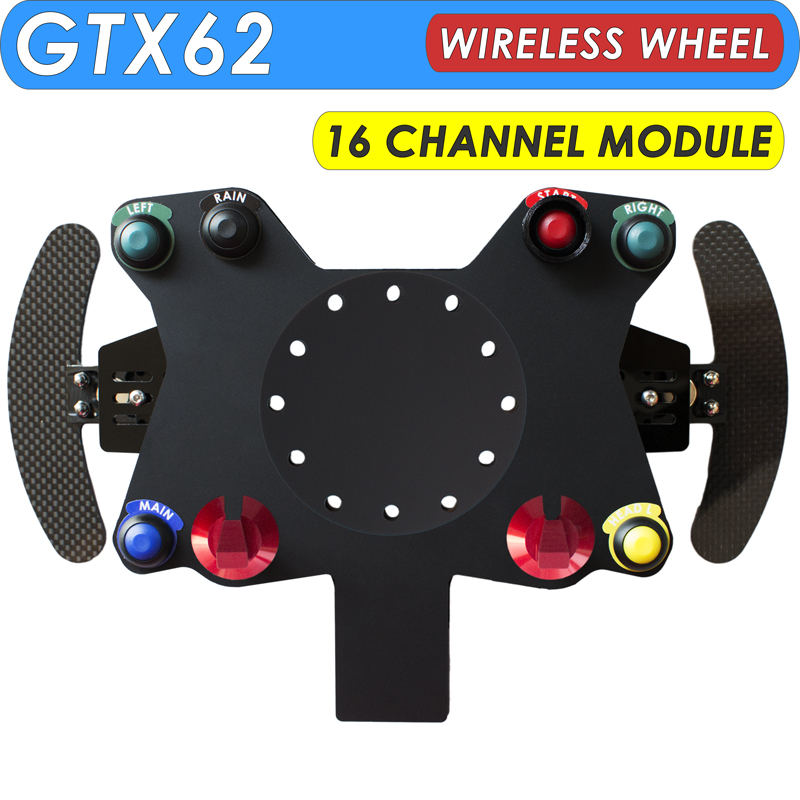

Fully assembled* with six solid state-switched pushbuttons, two of our MIL-spec calibration switches with red anodised knobs and two paddleshift switches with a choice of carbon fibre levers. Uses the larger X62 plate, seen here on a 350mm wheel, and ready to bolt onto your steering wheel boss.
A revolution in wireless steering wheel controls, for kit cars and race cars.
Main Features
- relay or solid-state switched gear shift control
- 6 relay or solid-state switched buttons on wireless button plate
- 2 Mil-spec 0-5V rotary switches
- 6 spare switched circuits, for additional control via CAN keypads and other devices
- widely-compatible CAN signalling
After you place your order, we will contact you to confirm your pushbutton colour choice and layout.
*steering wheel not included and is shown for illustration purposes only.
| Paddle plate.pdf |
|
| 8 hole button plate X62.pdf |
|
| Kit Car Electronics paddle shifter datasheet.pdf |
|
| KCE_WirelessCAN_Kvaser_dbc.zip |
|
| KCE_WirelessCAN_ECUMaster.zip |
|
| KCE_WirelessCAN_AIM_xc1.zip |
|
| FREEWheel USB config tool Windows driver.zip |
|
| FREEWheel CAN configuration instructions.pdf |
|
| KCE_WirelessCAN_MaxxECU.zip |
|
| FREEWheel 16 Configuration tool.zip |
|
Included
- 14-switching channel wireless CAN-enabled Receiver (8 relay & 6 solid-state or 14 solid-state depending on variant chosen)
- USB cable
- Installation instructions
Optional
- Easyfit Transmitter pre-assembled with pushbuttons, Mil-spec calibration switches and knobs as ordered, fitted to the chosen plate
- Transmitter battery
- 0.7m loom/s or pins & housing/s
- Motorsport pushbutton decal sheet
- Rotary decal sheet
- Carbon fibre button plate in lieu of acrylic button plate
- HYBRID 16: 8 Internal relays rated to 15A at 12V which can be used for high or low-side switching of loads
- HYBRID 16: Full solid-state low-side switching of 6 concurrent 600mA resistive or inductive loads, such as standard automotive relays, with built-in short circuit and overcurrent protection
- SOLID-STATE 16: Full solid-state low-side switching of 14 concurrent 600mA resistive or inductive loads, such as standard automotive relays, with built-in short circuit and overcurrent protection
- 2 analogue output channels for wireless 0-5V control such as multimap boost switching and traction slip control
- CAN output for seamless PDM integration across all channels, compatible with all major CAN systems
- Ultimate performance from a 10ms / 100Hz broadcast rate
- Ultimate compatibility from 7 simultaneous CAN message formats (LSB, MSB and bitmasking) with free selection of base address, bus speed and identifier length
- Range of driving and racing output channel modes
- Re-configurable using the included FREEWheel USB programming software
- AMPSEAL connector(s)
- IP67-rated USB port with rubber cap
- Flame-retardant ABS plastic
- Fully conformal coated for environmental protection
- Wireless wheelplate Transmitter battery life over 5 years with standard buttons, and over 2 years with lit buttons
- Unique Transmitter ID prevents cross-talk and interference
- 0.7m wiring looms
- Internal 120Ohm CAN termination resistor
Driving Features
- Momentary
- Latching
- BlinkSTOP indicator cancelling
- BeamSTOP main beam toggle & flash
- Flash-to-Pass
- IVA fog light behaviour
- Hazards
- Wiper Latch & Intermittent
- Flash 1Hz, flash 2Hz
- Rainlight behaviour
Size & Weight
- Easyfit Transmitter: bolts straight onto your steering wheel hub and fits all standard bolt patterns on 6 x 70mm, 6 x 74mm and 3 x 50.8mm PCD steering wheels
- Easyfit Transmitter: 176 x 154 x 19-29mm, typically 220g including battery (excludes paddles)
- HYBRID 16 Receiver: 121 x 66 x 40mm
- SOLID-STATE 16 Receiver: 86 x 55 x 35mm
Plate Design
After you place your order, we will contact you and guide you through the plate design process.
We will confirm the buttonswitch colours, any decals you would like applying and how you would like the system pre-configured.
You will receive a photo of your loose-assembled plate for approval or changes and once you are completely happy with the design, we will put it into the queue for final assembly and test.
Availability & Leadtimes
We hold all our components in stock as sub-assemblies and this allows us to build quickly to your exact specification. We ask that you allow 3 working days for loose assembly of your plate and 7-10 working days for final assembly and despatch.
Shipping
See our Delivery Information here https://blinkstop.co.uk/shop/delivery
Warranty & Returns
See our Returns policy here https://blinkstop.co.uk/shop/returns
and our Guarantee policy here https://blinkstop.co.uk/shop/guarantee
