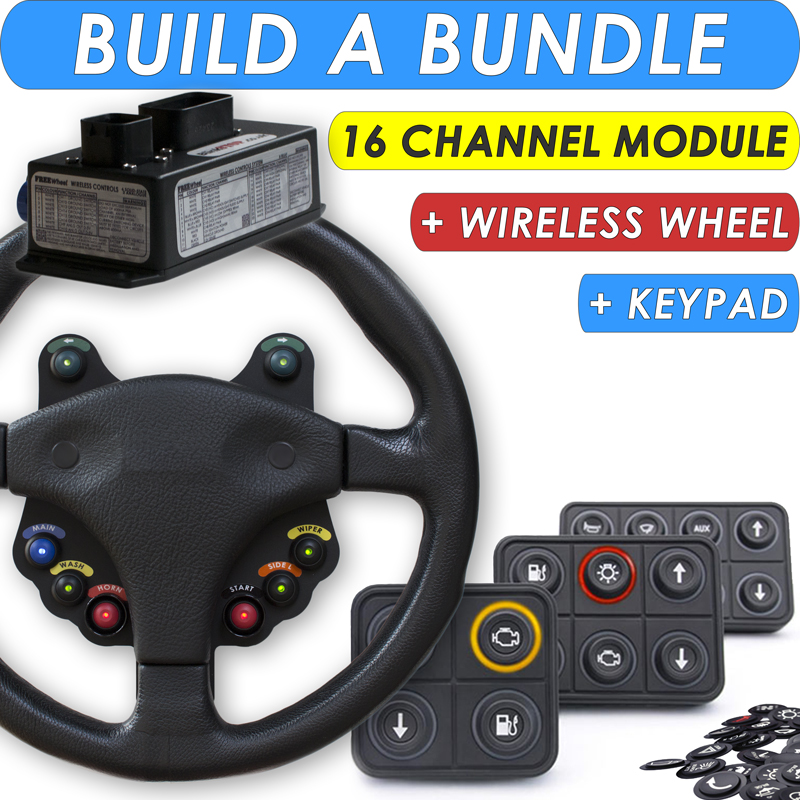

• Build-Your-Own 16-Channel Easyfit Bundle

Choose from HYBRID or SOLID-STATE receivers, add a wireless button plate and a keypad if desired!

Fully assembled* and configured with supplied keypad integration out of the box.

A revolution in wireless steering wheel controls, for kit cars and race cars.

Main Features

  • CAN signalling as standard
  • Two 0-5V outputs as standard
  • HYBRID Receiver: Eight 15A relay switched outputs with six 600mA solid-state switched outputs
  • SOLID-STATE Receiver: Fourteen 600mA solid-state switched outputs

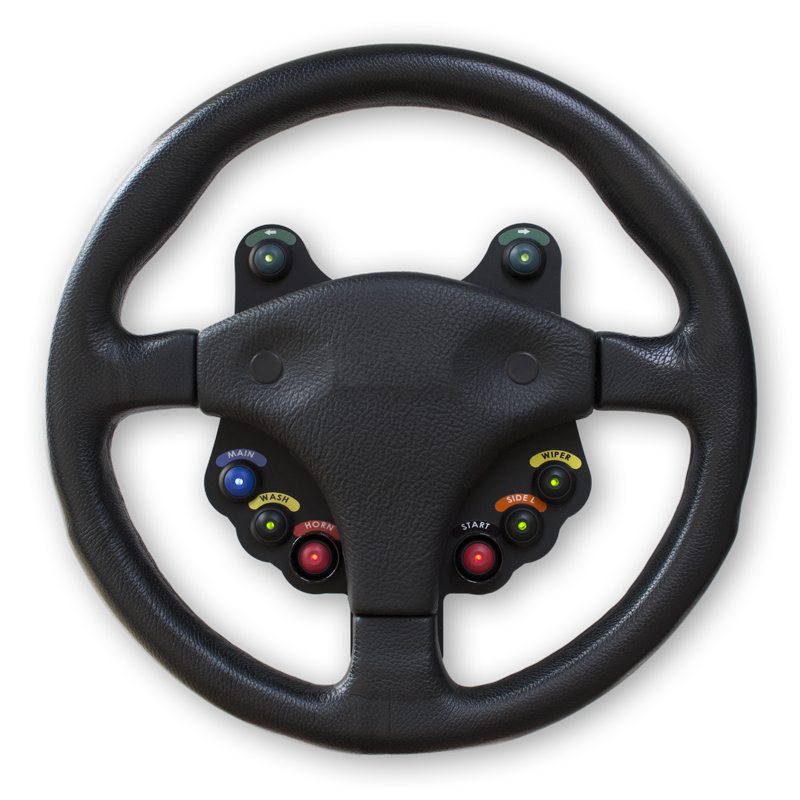

  • Range of wireless-enabled button plates
  • Options to add paddle switches, Mil-spec rotary switches and backlit pushbuttons

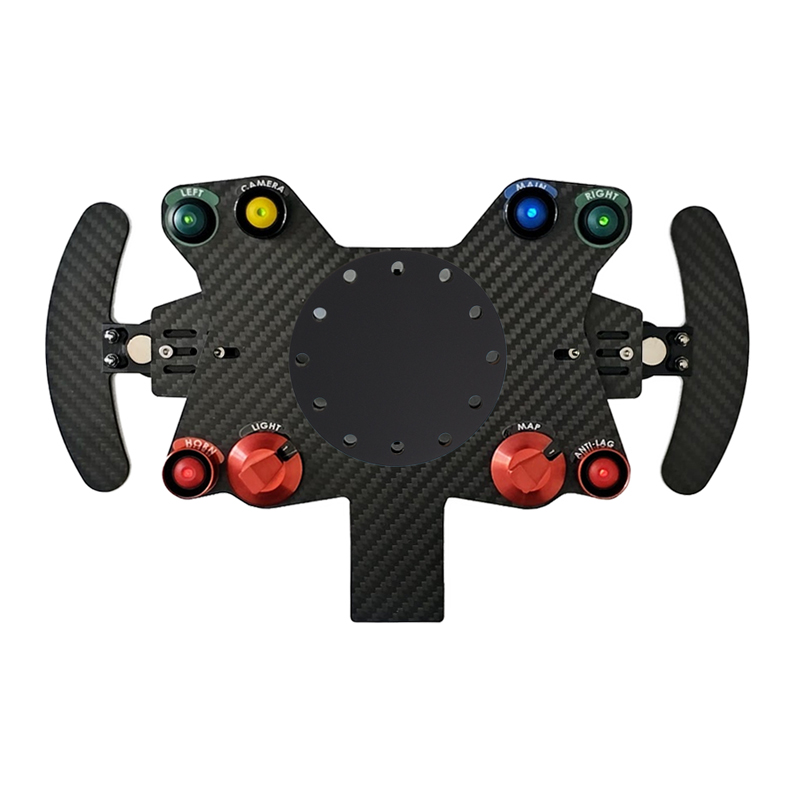

  • Upgrade to carbon fibre button plate
  • Add a CAN keypad, configured for interoperability out of the box
  • Option to add a keypad PETG bezel & mount

After you place your order, we will contact you to confirm your pushbutton colour choice and layout.


*steering wheel not included and is shown for illustration purposes only.


KCE_WirelessCAN_Kvaser_dbc.zip
KCE_WirelessCAN_ECUMaster.zip
KCE_WirelessCAN_AIM_xc1.zip
KCE_FWwireless_CAN_MaxxECU.zip

Included

  • 14-switching channel wireless CAN-enabled Receiver (8 relay & 6 solid-state or 14 solid-state depending on variant chosen)
  • 120Ohm CAN termination resistor (fitted or loose)
  • USB cable
  • Installation instructions

Optional

  • Easyfit Transmitter pre-assembled with pushbuttons, Mil-spec calibration switches and knobs as ordered, fitted to the chosen plate
  • Transmitter battery
  • 0.7m loom/s or pins & housing/s
  • Motorsport pushbutton decal sheet
  • Rotary decal sheet
  • Carbon fibre button plate in lieu of acrylic button plate

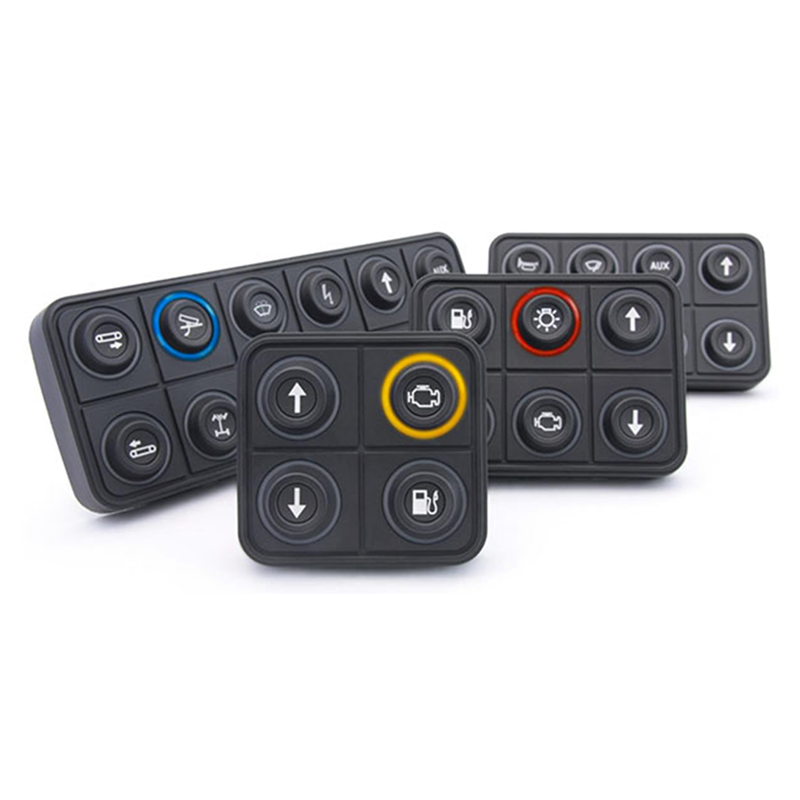

  • BlinkMarine CAN keypad with matching quantity of key inserts & DT connector



Hardware Features

  • HYBRID 16: 8 Internal relays rated to 15A at 12V which can be used for high or low-side switching of loads
  • HYBRID 16: Full solid-state low-side switching of 6 concurrent 600mA resistive or inductive loads, such as standard automotive relays, with built-in short circuit and overcurrent protection
  • SOLID-STATE 16: Full solid-state low-side switching of 14 concurrent 600mA resistive or inductive loads, such as standard automotive relays, with built-in short circuit and overcurrent protection
  • 2 analogue output channels for wireless 0-5V control such as multimap boost switching and traction slip control
  • CAN output for seamless PDM integration across all channels, compatible with all major CAN systems
  • Ultimate performance from a 10ms / 100Hz broadcast rate
  • Ultimate compatibility from 7 simultaneous CAN message formats (LSB, MSB and bitmasking) with free selection of base address, bus speed and identifier length
  • Range of driving and racing output channel modes
  • Re-configurable using the included FREEWheel USB programming software
  • AMPSEAL connector(s)
  • IP67-rated USB port with rubber cap
  • Flame-retardant ABS plastic
  • Fully conformal coated for environmental protection
  • Wireless wheelplate Transmitter battery life over 5 years with standard buttons, and over 2 years with lit buttons
  • Unique Transmitter ID prevents cross-talk and interference
  • 0.7m wiring looms
  • Internal 120Ohm CAN termination resistor

Driving Features

  • Momentary
  • Latching
  • BlinkSTOP indicator cancelling
  • BeamSTOP main beam toggle & flash
  • Flash-to-Pass
  • IVA fog light behaviour
  • Hazards
  • Wiper Latch & Intermittent
  • Flash 1Hz, flash 2Hz
  • Rainlight behaviour

Size & Weight

  • Easyfit Transmitter: bolts straight onto your steering wheel hub and fits all standard bolt patterns on 6 x 70mm, 6 x 74mm and 3 x 50.8mm PCD steering wheels
  • Easyfit Transmitter: 176 x 154 x 19-29mm, typically 220g including battery (excludes paddles)
  • HYBRID 16 Receiver: 121 x 66 x 40mm
  • SOLID-STATE 16 Receiver: 86 x 55 x 35mm



Plate Design

After you place your order, we will contact you and guide you through the plate design process.

We will confirm the buttonswitch colours, any decals you would like applying and how you would like the system pre-configured.

You will receive a photo of your loose-assembled plate for approval or changes and once you are completely happy with the design, we will put it into the queue for final assembly and test.


Availability & Leadtimes

We hold all our components in stock as sub-assemblies and this allows us to build quickly to your exact specification. We ask that you allow 3 working days for loose assembly of your plate and 7-10 working days for final assembly and despatch.


Shipping

See our Delivery Information here https://blinkstop.co.uk/shop/delivery


Warranty & Returns

See our Returns policy here https://blinkstop.co.uk/shop/returns

and our Guarantee policy here https://blinkstop.co.uk/shop/guarantee



Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Build-Your-Own 16-Channel Easyfit Bundle

  • Product Code: FW16_BYO
  • Availability: 6
  • £477.60

  • Ex Tax: £398.00

Available Options
